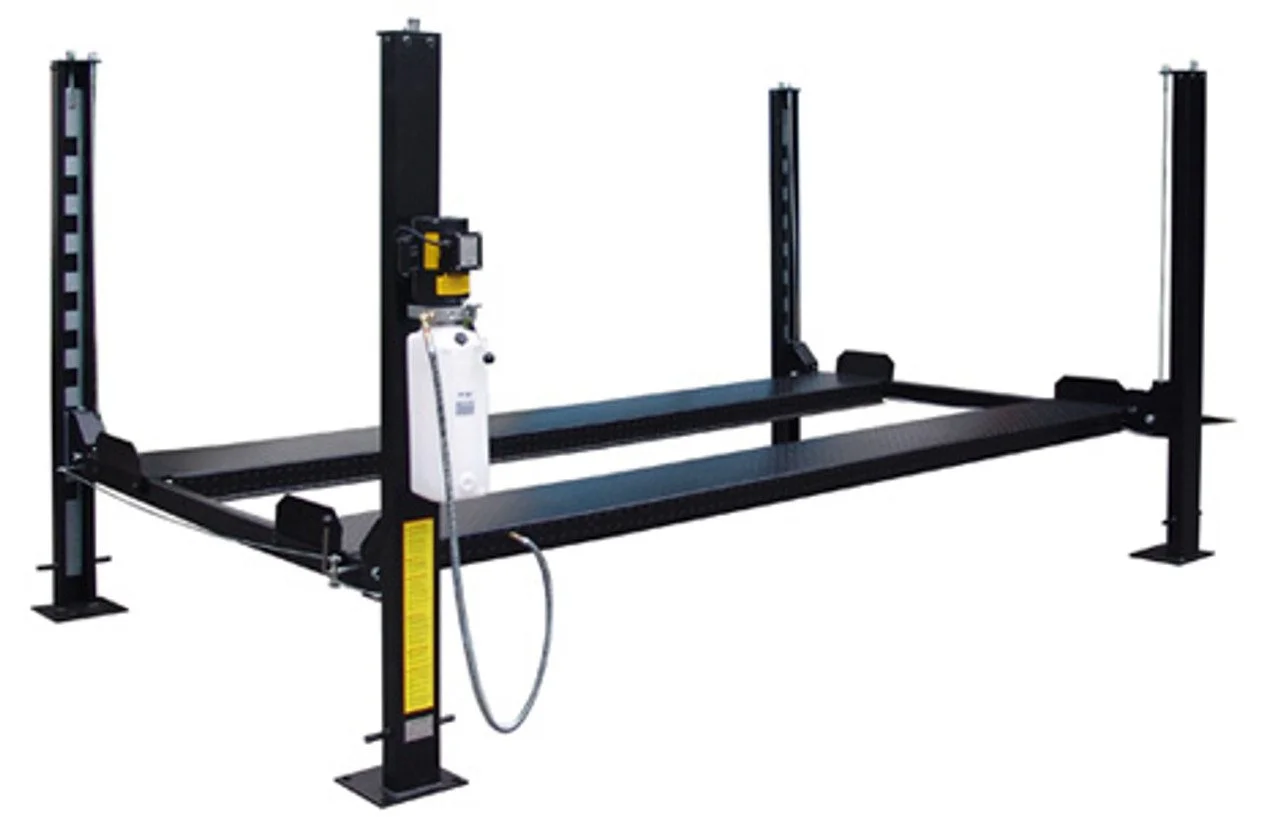

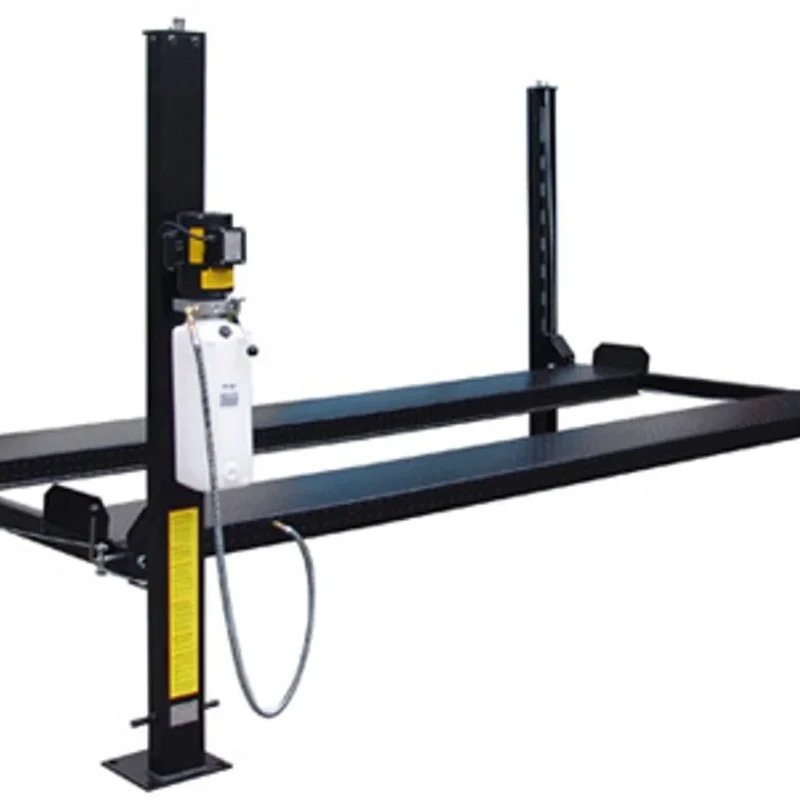

TUXEDO FP8K-B Basic Storage Lift 8,000lb 4 Post Parking Lifts

TUX FP8K-B Basic Storage Lift 8,000lb 4 Post Parking Lift IN STOCK FEATURES 8,000 lb lifting capacity Carriages completely enclosed for safety Internal lock ladder safety system with “auto engage” locking bar in the event of cable failure Extra large slider blocks for added stability 10 lock positions Aircraft quality cables rated at 14,500 lbs 18″ wide runways formed with one-piece 3/16″ non-skid diamond plate Easy operation: Lock release handle located near power unit Large 3″ diameter cylinder SPECS Capacity 8,000 lbs. Lifting Height 74.8″ Overall Length w/Ramp 207.3″ Overall Length w/No Ramp 175.5″ Overall Width 103.5″ Runway Tread Width 18.7″ Runway Length 165.5″ Runway Height 4.3″ Column Height 86″ Clearance Between Columns 94.4″ Clearance between Runways 37.2″ Outside Runway to Outside Runway 74.8″ Clearance Under Runways 70″ Drive Thru Width 80″ Locking Positions 10 Base Plate Size 10” x 12 Power 110V-20 Amp / 1PH Ship Weight 1,695 lbs
